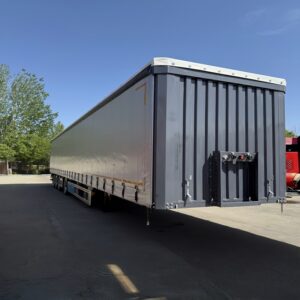

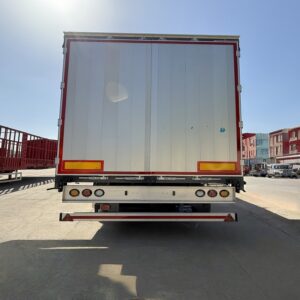

Straight beam curtain three-axis bulk transport vehicle:
13.5 meters long, 2.55 meters wide, and 4 meters high.
to configure:
① The upper bottom plate of the main beam is 10mm, the lower bottom plate is 12mm, the neutral plate is 6mm, and the height is 500mm. The side beam is made of 16 channel steel with a thickness of 4 millimeters, the crossbeam is made of 10 # channel steel with a thickness of 2.5 millimeters, and there are 6 bottom beams made of 3X5X2mm channel steel.
② Three Huizhou Fuhua 13 ton 1840 axles, 10 Taiyue leaf springs X9X13 thick, 6 double chamber Ruili, automatic adjustment arm, and Kangjian synchronous valve. There are 12 Linglong 12R, 22.5, and 18PRX12 tires. Steel rings 9.0X12 pieces.
③ Each toolbox on the right is 1.5 meters long, with a protective net and 28 tons of support legs. There is a net dragon at the rear end, which is 1.4 meters long and 2.4 meters wide. There are photos. The floor is made of 3-4 millimeter patterned boards, and there is a small retractable ladder at the back.
④ There are 3 active columns and 4 aluminum baffles inside the box. The top can be extended and moved.
