| Specifications | |
| Dimension | 13.6m×2.55m×1.55m (Outside) |
| Payload | 60T |
| Tare weight | About 7 T |
| Chassis | |
| Main beam | Heavy duty and extra durability designed I beam; Opting for high tensile steel T700, welded by automatic Submerged-Arc processes. |
| Frame Beam | Top Flange 12mm,width 140mm; Middle Flange 8mm; Bottom Flange 12mm,width 140mm, main beam height 500mm |
| Frame Floor | The Thickness is 3mm pattern |
| Axle | 3 axles, 13Ton |
| Landing Gear | Fuwa BRAND 28T lifting capacity with two speed |
| King Pin | 2.00 inch bolt-in king pin |
| Suspension | Air suspension |
| Pneumatic Braking System | Dual line pneumatic brake system,T30 air chamber ,40L x2 air tanks, Emergency relay valve |

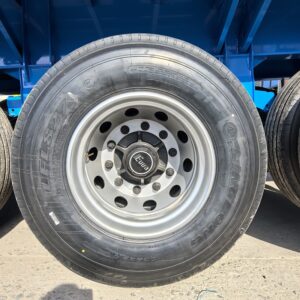

| Tire | 385/R22.5*6 pcs Triangle tire |
| Accessories | One standard tool box |
| Spare tire rack | One |
| Electrical system | 24 volt electrical system.7 pin electrical connector. Parking stop, reverse, number plate and indicator lights. rear lights conform to European standard, rear front and side reflectors |
| Packing and shipping | |
| Painting | dusting |
| Shipping Terms | |

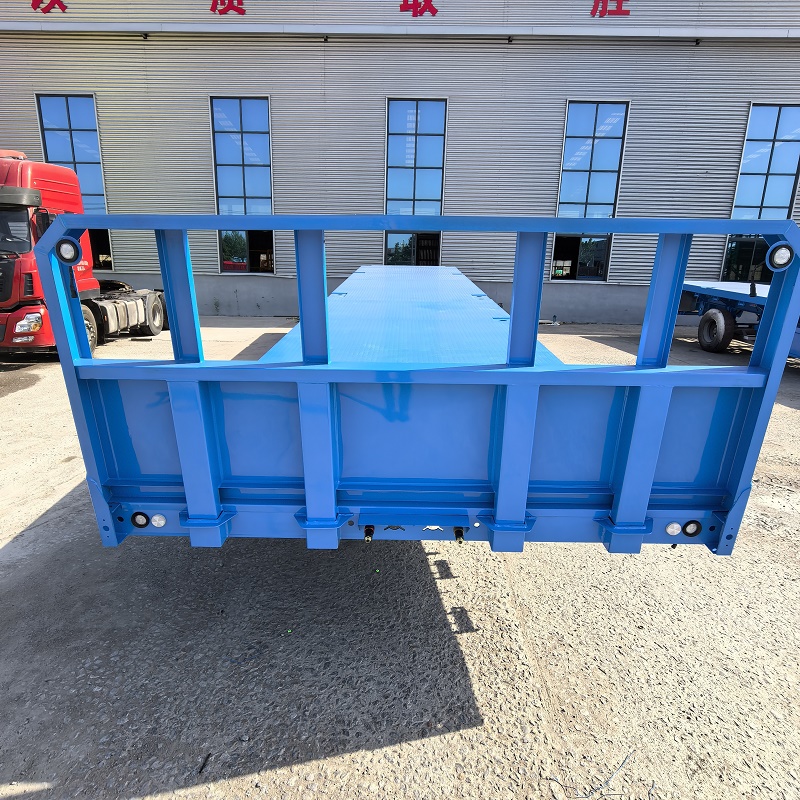

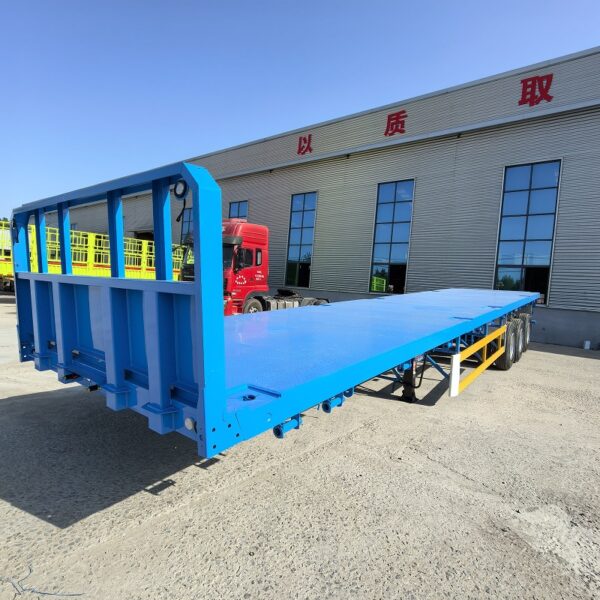

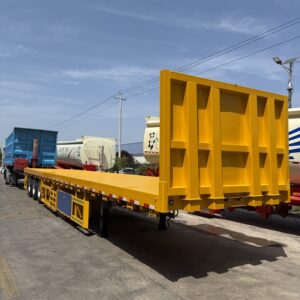

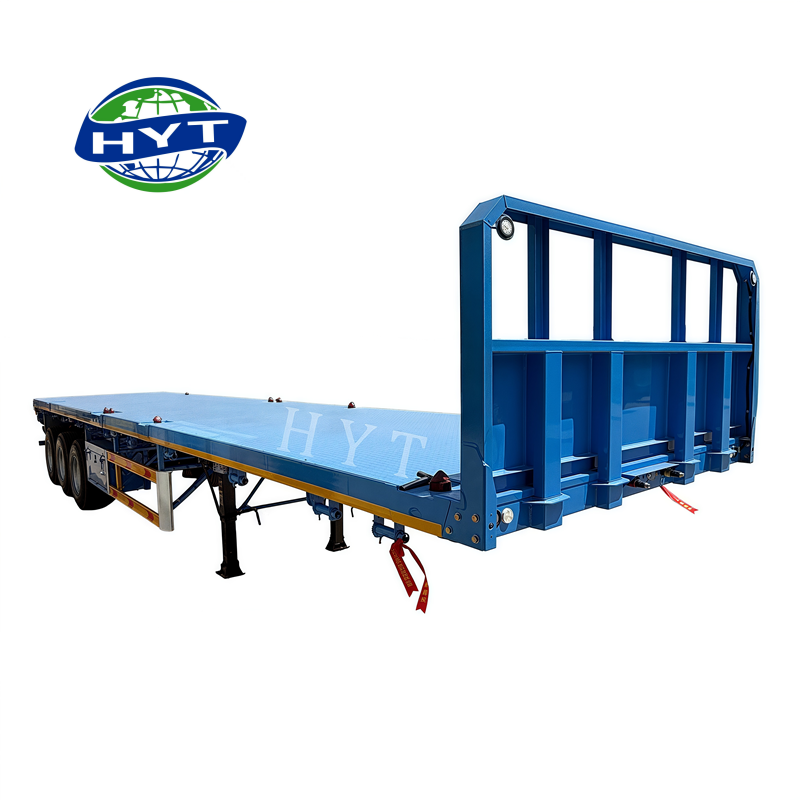

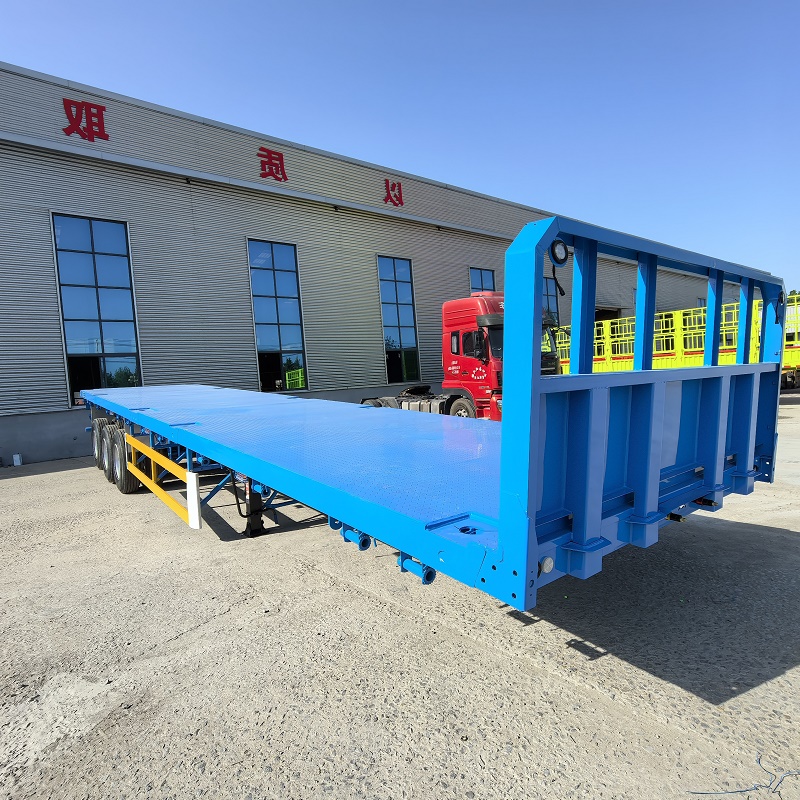

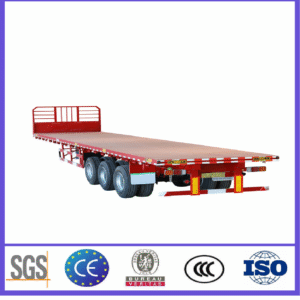

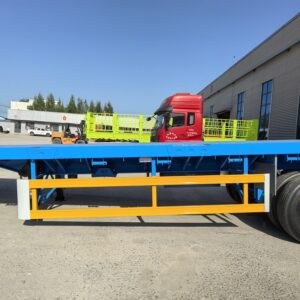

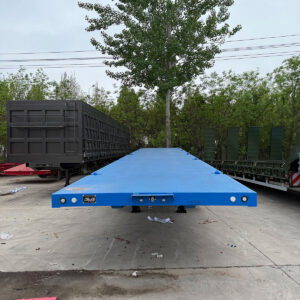

Flatbed semi-trailers are a type of specialized transport equipment widely used in the field of logistics and transportation. They can be used for logistics transportation, transportation of building materials and construction equipment, transportation of large machinery and equipment and parts, transportation of special cargo with irregular shapes and oversized dimensions, etc. Its sturdy structure and multi-axle configuration enable it to easily handle the weight and size of these standardized cargo units.
